Cargo Cabin
| Cargo Cabin Details | Boeing B747-400F |
General dimensions and information
| Length | 70,70 meter |
| Wingspan | 64,40 meter |
| Height | 19,40 meter |
| Cruising speed | 920 km per hour |
| Max altitude | 13.700 meter |
| Max take-off weight | 396.900 kgs |
| Max gross payload | 113.000 kgs |
| Range (Max payload) | 11.380 kms |

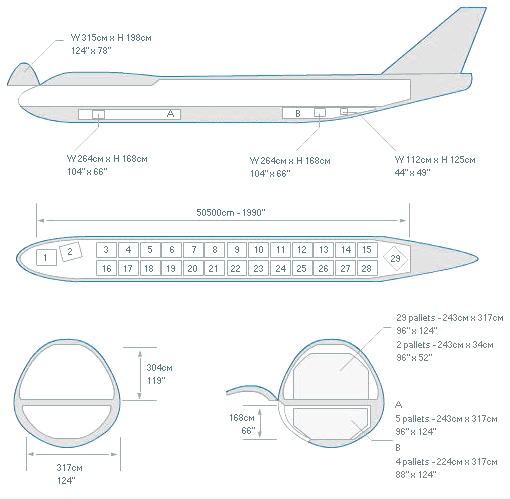

Cargo Cabin Dimensions
| Length | 56,40 meter |
| Max width | 5,90 meter |
| Height | 3,05 meterr |
| Capacity | 610,00 cubic meter / main deck 130,00 cubic meter / lower decks |
Cargo door dimensions
| Nose cargo door | 318 × 249 cms / width x height |
| Rear cargo door | N/A |
| Side cargo door | 340 × 312 cms / width x height |
| Lower cargo door | 270 × 168 cms / width x height |
Payload
| Paylaod | 113.000 kgs |
| Main deck | 610,00 cubic meter |
| Belly volume | 130,00 cubic meter |
| Pallets main deck | 29 pallets, 244 × 318 cms |
| Pallets belly | 32 LD-1 container |
