Cargo Cabin

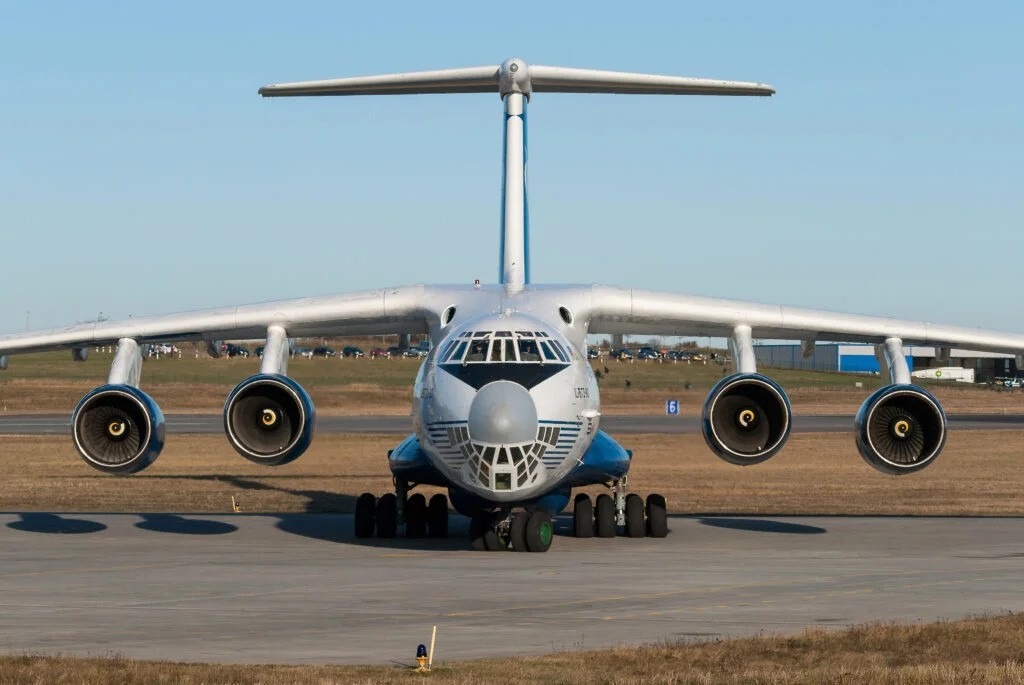

| Cargo Cabin Details | Ilyushin IL-76TD-90VD / IL-76TD |
General dimensions and information
| Length | 46,60 meter |
| Wingspan | 50,50 meter |
| Height | 14,70 meter |
| Cruising speed | 750 to 800 kms kms per hour |
| Max altitude | 12.000 meter |
| Max take-off weight | 195.000 kgs |
| Max gross payload | 50.000 kgs |
| Range (Max payload) | 4.600 kms |

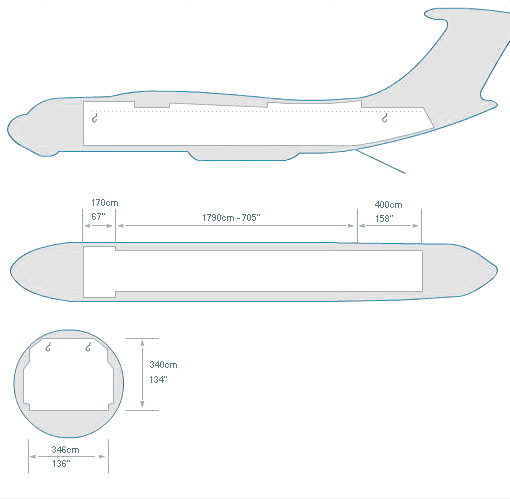

Cargo Cabin Dimensions
| Length | 24,00 meter incldg rear ramp, 20,00 meter excldg rear ramp |
| Max width | 3,15 meter |
| Height | 3,20 meter |
Cargo door dimensions
| Nose cargo door | N/A |
| Rear cargo door | 315 × 320 cms |
| Side cargo door | N/A |
| Belly cargo door | N/A |
Payload
| Paylaod | N/A |
| Main deck | 50.000 kgs |
| Belly volume | N/A |
| Pallets main deck | N/A |
| Pallets belly | N/A |
